Pneumatic and electric actuator as well as pneumatic accessories...
English
 |
| Position: | |
|---|---|
| Material: | |
| Protection Class: | |
| port size ranges: | |
| Quantity: | |
Application:

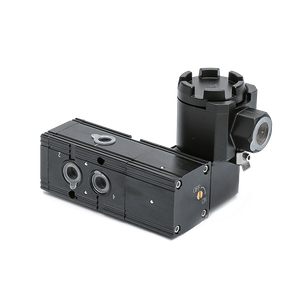

24V Industrial/Agricultural/Construction/Automotive Explosion-Proof 3-Way Pneumatic Solenoid Valve
Main Features:
1. Explosion proof Namur Solenoid Valve
2. All the exhaust ports of this spool valve are connectable which offer excellent
environmental protection against the ingress of liquids, dusts or other foreigh matter. 3.The spool valve can be fitted with aluminium or stainless steel 316 e nclosure coil certificated for use in corrosive area and in hazardous area(Class I, Div.1 Group A, B, C, D, Ex d II C T6).
4. The product has passed ATEX certification of DNV and ExdllCT6 certification
e!
Features:
Specification | |
Body Material | extruded Aluminum |
Finishing | Anodized |
Seal | NBR |
Material in contact with fluid |
|
CV value | CV=1.4(25mm) |
Port size | G1/4"BSPP or NPT1/4 |
Mount standard | 24*32NAMUR |
Fix screws | M5*27 Stainless steel |
Protection class | IP67/NEMA4,4X |
Ex-proof class | N O |
Working temperature | -10°C~80°C(change grease and seals can |
Working pressure | 1~8 bar |
Working medium | (<=40um)dry and lubricated air |
Life cycles | 10 millions |
