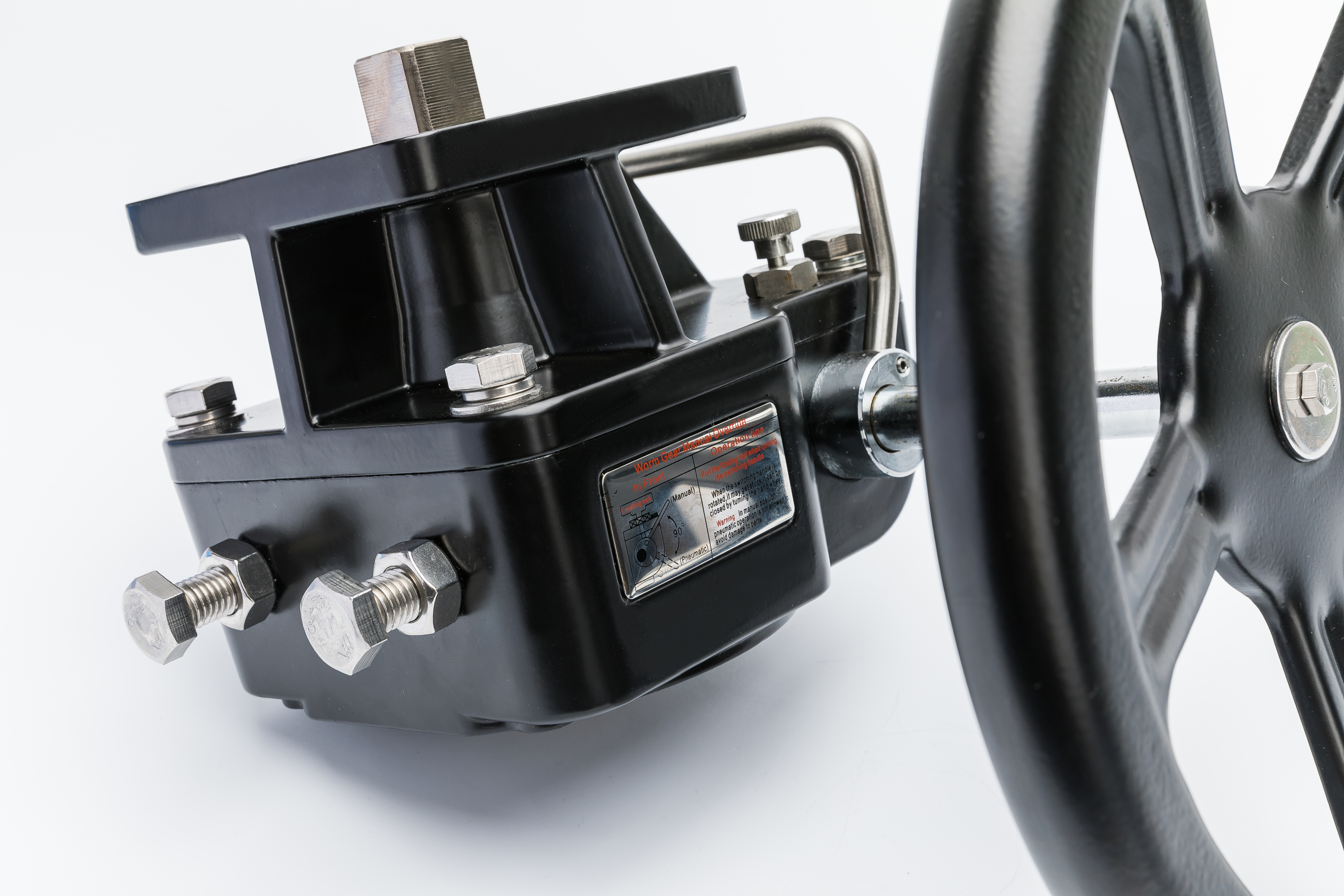

Gearbox Manual Override Manual Turbine box for Valve Pneumatic Actuator

This manual override are used in petroleum, chemical, pharmaceutical, water treatment, power plants, nuclear power and other places, for 90 degrees open ball valves, butterfly valves, plug valves and other valves supporting the use of the company's supply of manual clutch
shaft:
Material:
Screw:
Ambient Temperature:
Availability:
Quantity:

Application:

This manual override are used in petroleum, chemical, pharmaceutical, water treatment, power plants, nuclear power and other places, for 90 degrees open ball valves, butterfly valves, plug valves and other valves supporting the use of the company's supply of manual clutch

They can also be used according to customer requirements on the product speed ratio, use temperature, protection level, anti-corrosion level.

Adjust customization. The company is based on domestic and international markets, Customers mainly from the Middle East, Europe and the

United States and other well-known foreign valve enterprises

Advantages:

1. It is small in size, light in weight and reasonable in design

2. Products are serialized and output torque is matched with pneumatic devices

3. Turbine connection holes have two keyways 90 degrees apart so that users can choose the relative position of the device

with the valve according to their needs

4. Lifting the limit pulling ring, rotating the eccentric device 90 degree limit pin automatic limit , to achieve pneumatic ,

otherwise to achieve manual

5. Product factory , equipped with special grease , and valve assembly, the overall seal , dust-proof , waterproof protection.



Technical Parameter:


Model


Configuration of actuator

ISO05211
Standard flange

Hand whee
diameter

Speed
ratio

N.m


Connecting to actuator


Connecting to valves

Double action(DA)

 Spring Return (SR)


Center distance


Axis hole


Center distance


Axis hole

QS-1

DA50-85

SR50-75

F05/F07

14×14

F05/F07

14×14

180

38:1

180

QS-2

DA95-110

SR85-95

F07/F10

17×17

F07/F10

17×17

200

37:1

320

QS-3

DA125-140

SR110-125

F10/F12

22×22

F07/F10/F12

22×22

280

35:1

680

QS-4

DA160-190

SR140-160

F10/F12/F14

27×27

F10/F12 orF14

27×27

300

50:1

1200

QS-5

DA210-240

SR190-210

F14/F16

36×36

F10/F14orF12/F16

36×36

400

54:1

2100

QS-6

DA270-300

SR240-270

F16

46×46

F16

46×46

500

58:1

3000

QS-7

DA350

SR300

F16

46×46

F16

46×46

600

66:1

3800

QS-320

DA400

SR350-400

F25

55×55

F25

55×55

500

320:1

6600





 Bill of Material:



Solenoid Valve1 1 Bill of Material








NO.


Name


Material


NO.


Name


Material

1

Shaft

Alloy steel

9

Worm gear

 Ductile Cast Iron

2

Seal ring

Nitrile rubber

10

bearing

Alloy steel

3

Snap Ring


Alloy steel

11

Handle

Stainless steel(304)

4

Upper cover

Aluminium alloy

12

Eccentric sleeve

Alloy steel

5

Fastening

Stainless steel(304)

13

Seal ring

Nitrile rubber

6

Positioning pin

Alloy steel

14

Worm


Alloy steel

7

Hand wheel


Carbon steel

15

Transmission rod


Alloy steel

8

Seal ring

Nitrile rubber

16

Body

   Aluminium alloy


Technical Drawing:



Solenoid Valve1 2 Technical Drawing


























Model

QS-1

QS-2

QS-3

QS-4

QS-5

QS-6

QS-7

A

F07

F10

F12

F12

F14

F16

F16

C

F05

F07

F07/F10

F10

F10

1

I

D

14*14

17*17

22*22

27*27

36*36

46*46

46*46

E

15

18

22

28

38

48

48

F

105

110

130

165

177

192

200

G

16

19

24

29

40

51

51

H

14*14

17*17

22*22

27*27

36*36

46*46

46*46

N

192

185

290

339

436

516

600

W

 90

125

140

187

221

252.5

286.5

J

 F07

F10

F12

F14

F16

F16

F16

K

 F05

F07

F10

F12

F14

I

I

L

 190

240

272

358

405

447

525

M

 155

180

202

268

295

322

379

P

70

94

113

129

165

165

φ235

Q

33

36

39

56

58.5

62

65

R

44

54

65

82

109

134

148

Hand wheel outer diameter

φ180

φ200

φ280

φ300

φ400

φ500

φ600

Reference weight(kg)

3

4.5

7

13.7

22

32

56
