Technical Features

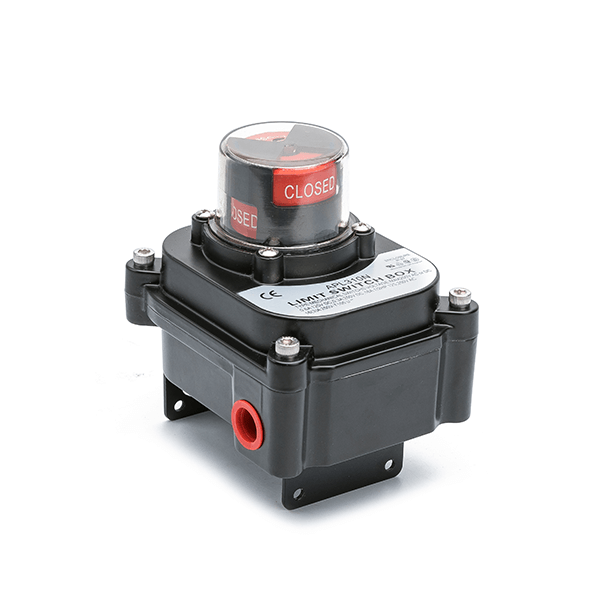

The APL Series Limit Switches features:
1.Solid and compact design aluminium die-cast housing with polyester powder coated finish;
2. Bolt-on Visual Position Indicator
3. “Quick-Set” spring loaded splined cam. No need to adjust again after initial setting.
4. Easy setting without tools
5. Dual cable entries
6. Captive cover bolts to prevent loss when cover is removed
7. NAMUR standard stainless steel shaft and bracket
Specification
Model | APL310/APL314 |
Protection Class | IP67 |
Voltage | 125/250VAC 0.6A 125VDC 0.3 250VDC |
Ambient Temp. | -40℃~+80℃ |
Micro Switches | Mechanical SPDT/DPDT |
Cover | Aluminum Die casting |
Indicator | RED/YELLOW |
NAMUR Bracket | SS304/2Cr13 |
Terminal | Standard 12 |
Sealing O Ring | NBR |
