Product Features
1. Body: Body material is hard aluminum alloy, which is treated by hard anodic oxdization and coated by Polyester powder, so that it has great corrosion resistance and protection class is lp67;
2. Motor: Fully enclosed cage type motor is small in size and inertia, large in torque. Insulation class is is F grade which can prevent motor over-heating;
3. Manual Structure: Small handle is reliable, energy-saving. It can be used for manual operation when electricity is off; In automatic operation, it can be fixed inside the clip for easy operation;
4. Indicator: Indicator is assembled on center axis, valve position can be observed; Outside mirror design facilitates position observation and prevents water drops accumulation;
5. Enclosure: High sealing performance, standard protection class is lp67;
6. Limit Switches: Mechanical and electronic position limit switches. Mechanical stop screw can be adjustable; Electronic limit switches can be controlled by cam. Position can be set easily and accurately by simply adjusting the cam without any influence by handle;
7. Self Lock: Accurate turbo-worm structure can output large torque with high efficiency and lttle noise ( Max.50declbel).
Service life is quite long; Its self lock function can stop reverse rotation. Drive part is stable and reliable without additional lubrication; .
8. Captive Bolt: Bolts won't fall off when cover is disassembled;
9. Application: Bottom connection complies with ISO5211/DIN3337 Standard. Star square hole is easy for square valve stem linear or 45° rotation application; Both vertical and horizontal assemble are available;
10. Diagram: Control diagram complies with single phase or three phase wiring standard, reasonable wiring diagram and connection terminal can meet requirement of other optional functions.

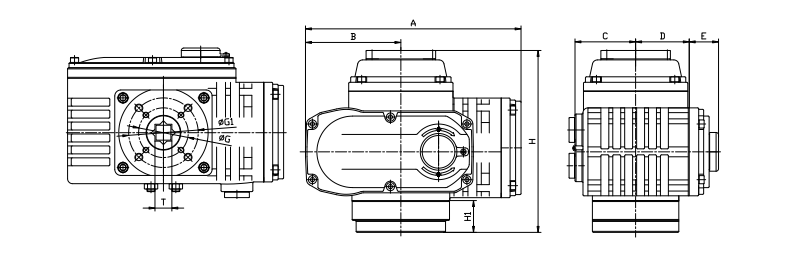

Dimension
Model | A | B | C | D | E | G | G1 | H | H1 | T |
QTE05 | 170 | 83 | 53 | 46 | 21 | 36/50 | 70 | 150 | 30 | 14 |
QTE10/20 | 217 | 96 | 61 | 53 | 25 | 50 | 70 | 182 | 32 | 17 |
QTE40/60 | 266 | 122 | 74 | 64 | 32 | 70 | 102 | 213 | 48 | 22 |
