Stainless Steel Mini Air Filter Regulator

AFC2000 Air Filter Regulator Water-oil Separator Trap Filter for Air Tools System, large flow rate and effectively removes water and particle.

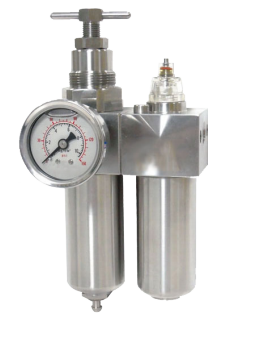

Stainless Steel Mini F.R.L Combination

Technical Features:

1. AISI316 STAINLESS STEEL

2. For high pressure use; corrosion and chemical resistance.

3. Good performance for outdoor facility.

4. Suitable for semi-conductor industry.

5. The product effectively removes water and particle.

6. Accurate and sensitive pressure setting.

7. Lubricator oil can be replenished without stopping air supply.

8. Oil spray in mist ensures good lubrication for machines.

9. Light weight, compact size for space saving.

10. High pressure resistant.

Technical Parameter:

Body material	SUS316 /Stainless steel SUS316
Bowl material	SUS316/Stainless steel SUS316
Pressure gauge material	Case:Stainless steel SUS304,/Thread:Stainless steel SUS316,
Filter element material	Stainless steel SUS316
Filtration accuracy	15μm(Standard)40μm(Option)
Operating pressure range	0~20kgf/cm²
Proof pressure	30kgt/cm²
Ambient temperature	-10°C~70℃
Lubricator bowl capacity	Semi-auto drain (Drains below 0.50.5kgf/cm2)
Net weight	Pressure gauge,Mounting bracket,Plug, Screwx2
Accessories	Pressure Gauge (0~25kg)

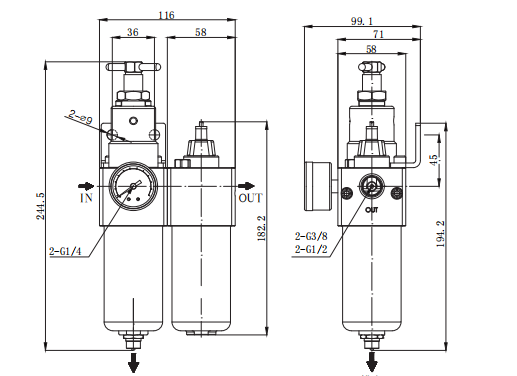

Stainless Steel Mini F.R.L Combination 2

Model	Port size	Max.flow rate	Standard drain	Lubricator bowl capacity	Filter bowl capacity
SFRL-200-02	1/4	1850 I/min	2640g	105cc	125cc

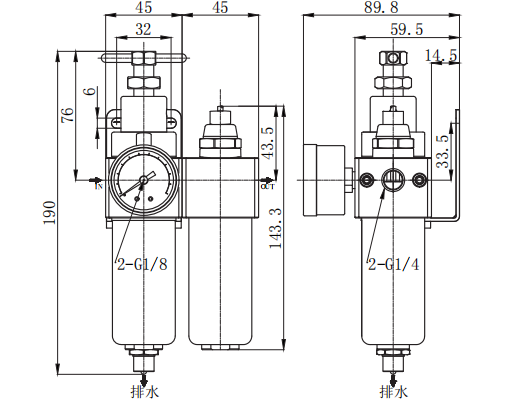

Stainless Steel Mini F.R.L Combination 3
