Stainless Steel Standard Air Filter Regulator from China manufacturer - Valco

AFC2000 Air Filter Regulator Water-oil Separator Trap Filter for Air Tools System, large flow rate and effectively removes water and particle.

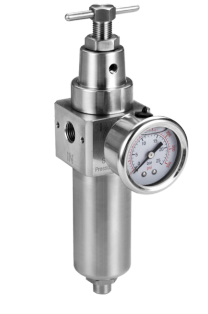

Stainless Steel Filter Regulator

Technical Features:

1. AISI316 STAINLESS STEEL

2. For high pressure use; corrosion and chemical resistance.

3. Good performance in chemically working environments and outdoor facility.

4. Suitable for semi-conductor industry.

5. Large flow rate and effectively removes water and particle.

6. Accurate and sensitive pressure setting.

7. Light weight; compact size for space saving.

8. High pressure resistant.

Stainless Steel Filter Regular 1

Technical Parameter:

Model	SFR-200/400/600
Port size	1/43/81/23/41"
Fluid	Compressed air
Regulator construction	Piston
Body material	Stainless steel SUS316
Bowl material	Stainless steel SUS316
Pressure gauge material	ICase:Stainless steel SUS304,/Thread:Stainless steel SUS316,
Filter element material	Stainless steel SUS316
Filtration accuracy	5μm(Standard)40μm(Option)
Operating pressure range	0~20kgf/cm²
Proof pressure	30kgf/cm2
Ambient temperature	-10°℃~70℃
Lubricator bowl capacity	Semi-auto drain (Drains below 0.50.5kgf/cm²)
Net weight	Pressure gauge,Mounting bracket,Plug, Screwx2
Accessories	(0~20kg)

Stainless Steel Filter Regular 2

Model	Port size	Max.flow rate	Standard drain	Lubricator bowl capacity

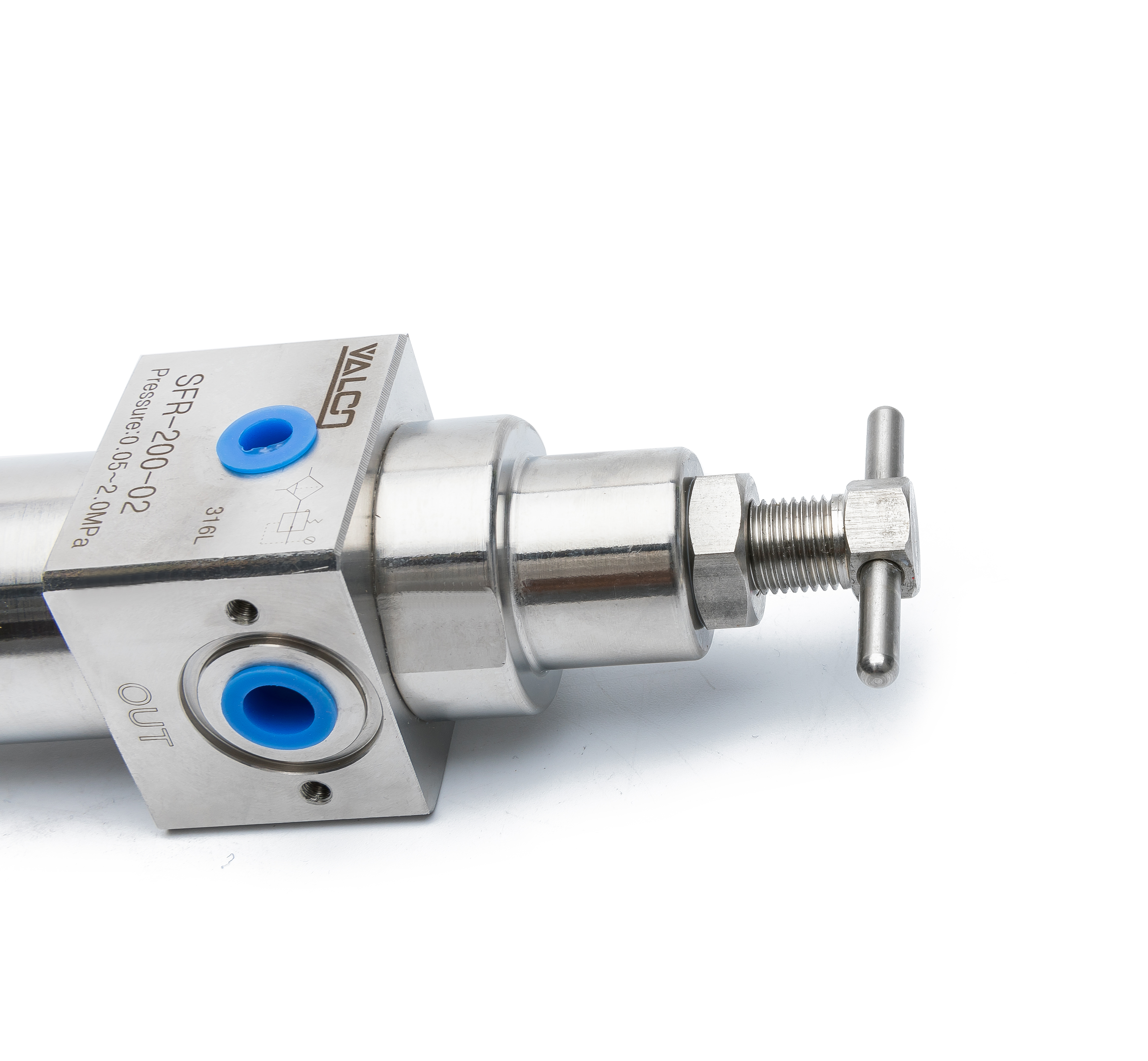

SFR-200-02	1/4	1850 I/min	1340g	105cc

Stainless Steel Filter Regular 3
