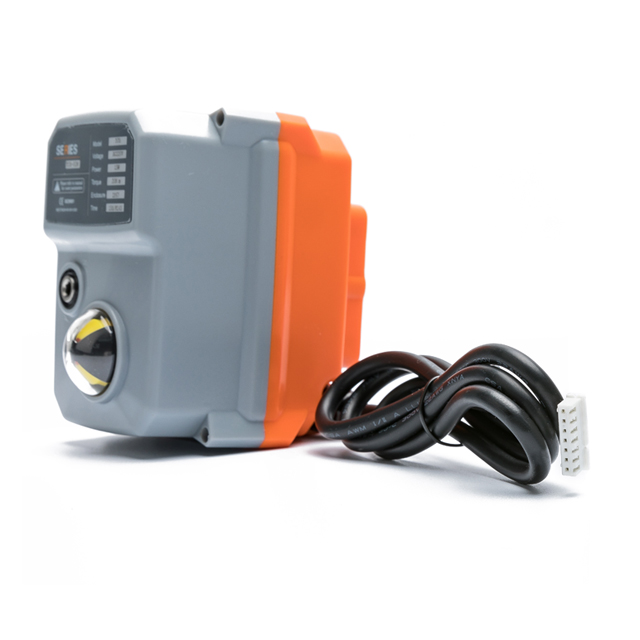

Pneumatic and electric actuator as well as pneumatic accessories...
English
 |
| Quantity: | |
|---|---|
Product Features
1. Body: Body material is hard aluminum alloy, which is treated by hard anodic oxdization and coated by Polyester powder, so that it has great corrosion resistance and protection class is lp67;
2. Motor: Fully enclosed cage type motor is small in size and inertia, large in torque. Insulation class is is F grade which can
prevent motor over-heating;
3. Manual Structure: Small handle is reliable, energy-saving. It can be used for manual operation when electricity is off; In
automatic operation, it can be fixed inside the clip for easy operation;
4. Indicator: Indicator is assembled on center axis, valve position can be observed; Outside mirror design facilitates position
observation and prevents water drops accumulation;
5. Enclosure: High sealing performance, standard protection class is lp67;
6. Limit Switches: Mechanical and electronic position limit switches. Mechanical stop screw can be adjustable; Electronic limit
switches can be controlled by cam. Position can be set easily and accurately by simply adjusting the cam without any influence
by handle;
7. Self Lock: Accurate turbo-worm structure can output large torque with high efficiency and lttle noise ( Max.50declbel).
Service life is quite long; Its self lock function can stop reverse rotation. Drive part is stable and reliable without additional
lubrication; .
8. Captive Bolt: Bolts won't fall off when cover is disassembled;
9. Application: Bottom connection complies with ISO5211/DIN3337 Standard. Star square hole is easy for square valve stem
linear or 45° rotation application; Both vertical and horizontal assemble are available;
10. Diagram: Control diagram complies with single phase or three phase wiring standard, reasonable wiring diagram and
connection terminal can meet requirement of other optional functions.
