Characteristics

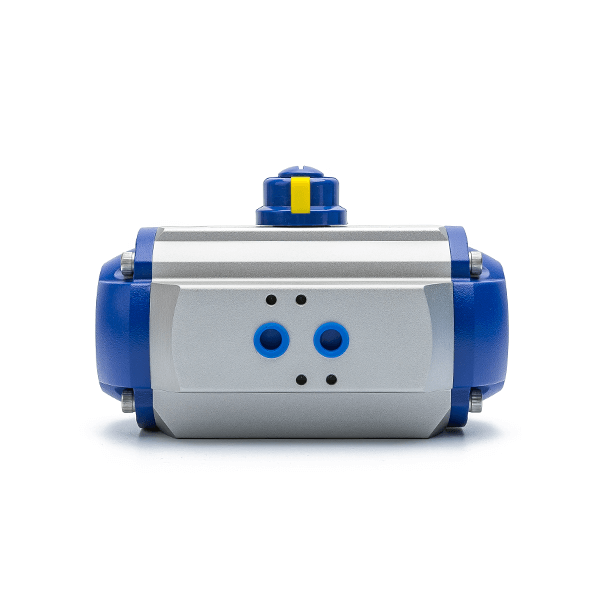

Design | Symmetrical Rack and Pinion |
Control pressure actuator | Pneumatic up to 12 bar | Hydraulic up to 210 bar | Natural gas up to 200 bar |
Torque | Up to 8500 Nm @5bar air supply |
Temperature range | -20°C to + 100°C | -40°C to + 100°C | -60°C to +80°C |
Coating | Epoxy Coating |
Cylinder | Cylinder with nickel plated running surfaces against corrosion providing a long lifetime for gaskets |
Versions | Single- or double-acting |
End stop | Adjustable leak free end stops +/- 5° |
Available options | Manual emergency activation | Operating time <0,5 seconds | Sour gas-version |
Certification | ATEX 94/9/EG,PED 2014/68/EU,TR-TS Approval, SIL 3 as per. IEC 61508,Machine directives 2006/42/EG |
Hydraulic actuator | 50~250 Bar |
Bill of Material
NO. | Part Description | Qty. | Standard Material | Remarks |
1 | Body | 1 | Aluminium Alloy | Anodized |
2 | Shaft | 1 | Alloy Steel | Nickel Plated |
3 | Bearing | 1 | POM | |
4 | O Ring | 1 | NBR | |
5 | O Ring | 1 | NBR | |
6 | Bearing | 1 | POM | |
7 | Spacer | 1 | Alloy Steel | |
8 | Shaft Bearing | 1 | POM | |
9 | Shaft Bearing | 1 | POM | |
10 | Shaft Washer | 1 | Stainless Steel | |
11 | Spring Clip | 1 | Stainless Steel | |
12 | Piston | 2 | Alloy Steel | Hard Anodized |
13 | Guide Ring | 2 | POM | |
14 | O Ring | 2 | NBR | |
15 | Piston Ring | 2 | POM | |
16 | Adjustment Screw | 2 | Stainless Steel | |
17 | Adjustment Nut | 2 | Stainless Steel | |
18 | Washer | 2 | Stainless Steel | |
19 | O Ring | 2 | NBR | |
20 | Plug | 2 | NBR | |
21 | Spring | 4-12 | Spring Steel | Zinc Phosphate Coating |
22 | End Cap | 2 | Alloy Steel | Epoxy Coating |
23 | Adjustment Screw | 2 | Stainless Steel | |
24 | Adjustment Nut | 2 | Stainless Steel | |
25 | O Ring | 2 | NBR | |
26 | Bolts | 8 | Stainless Steel | |
27 | Indicator | 1 | Plastic | |
28 | Nut | 1 | Plastic |
Product Feature
1. Body: Aluminium with Hard Anodix Oxidization
2. Shaft: Carbon Steel with ENP (SS as optional)
3. Adjustment Rod: Carton Steel with ENP (SS as optional)
4. Piston: Aluminium with Hard Anodix Oxidization
5. O Ring: NBR from Hansen Brand
6. Spring: 55CrSi with Zinc Phosphate Treatment
7. End Cap: Aluminium with Epoxy Coating
8. Body: 40u Hard Anodic Oxidization treatment;
9. Shaft coating: High precision, 20u ENP treatment;
10. Different rotation angle can be customized;
11. At least 1 Million cycle life;
